TAAQADEMY MUSIC SCHOOL
Construction and Design of Acoustically Treated Spaces
LOCATION - ASSAYE ROAD, BANGALORE, INDIA
AREA - 1,700 SQFT
CLIENT - BAND, MUSIC ACADEMY - THERMAL AND A QUARTER (TAAQ)
PROJECT TYPE - RECORDING STUDIO/ MUSIC SCHOOL INTERIORS
TEAM AT HUNDREDHANDS (BANGALORE) - ARKA BANERJEE, SHRUTI TILVA, ANANYA TRIPATHI
STUDIO FOR A BANGALORE-BASED ROCK BAND INCLUDES THREE SOUND-PROOF JAM ROOMS, PRACTICE PODS FOR INSTRUCTION, AN OFFICE FOR THREE AND A SMALL RETAIL OUTLET.
MUSIC ACADEMY ON ASSAYE ROAD FOR TEACHING CHILDREN
Concept Features and Layout
- AT THE CORE OF THIS PROJECT IS THE ACOUSTICAL TREATMENT OF THE JAM ROOMS WHICH WAS WORKED OUT WITH AN ACOUSTICAL ENGINEER TO DESIGN THE SOUNDPROOFING COMPONENTS.
- THE SHAPE OF THESE ROOMS WAS ALSO IMPORTANT BECAUSE THE NORMAL ORTHOGONAL ROOMS TEND TO HAVE ECHO AND BASS BOOMS AT THE CORNERS.
-THE CURVED EXPOSED BRICK WALLS OFFER AN INTERESTING CONTRAST TO THE RECTILINEAR VOLUME WITHIN THE BUILDING AND ARE SUBSTANTIALLY VISIBLE FROM THE STREET AS ALMOST THE WHOLE LENGTH OF THE BUILDING FACADE IS GLAZED.
MODEL OF PROPOSAL SHOWCASING KEY DESIGN ELEMENT-
CURVED WALL IN THE CENTRE

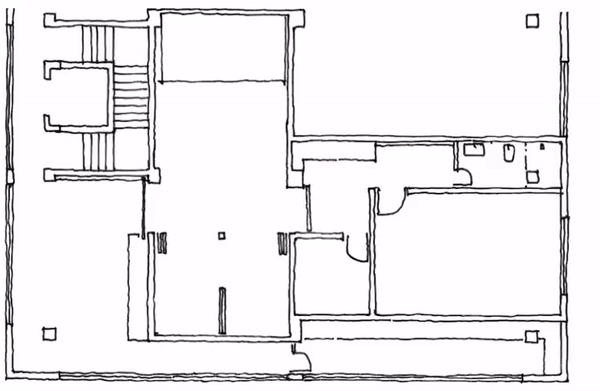

NAVIGATION AND ERGONOMICS PRIORITISED
LOOPING DIAGRAM FOR ALL ELECTRICAL POINTS
STRUCTURAL GLAZING AT NORTH EAST CORNER OF SITE TO ALLOW
FOR MAXIMUM SUNLIGHT TO ENTER THE SPACE
Site Supervision and Construction of Key Design Elements
CONSTRUCTION ON SITE OF JAALI PATTERN CURVE WALL FOR REDUCING BASS BOOM IN ROOM CORNERS, AN AESTHETIC DESIGN ELEMENT USED TO ENHANCE LIGHT AND VENTILATION
JAALI PATTERN CURVED BRICK WALL
Brick Wall Details
- 12MM RUBBER MAT
- RCC SLAB
- ELASTOMETRIC HANGER
- GALSSWOOL FRAMEWORK
- 6MM FLEXI PLYWOOD
- 20MM GYPSUM
- HOLLOW BRICKS
- TIMBER FRAMEWORK
- RCC LINTEL
- U-PVC DOOR
- ACOUSTIC FLUSH DOOR
- TIMBER FLOORING
- 25MM GYPSUM
- 20MM ANUTONE BOARD
- GLASSWOOL
- 19MM PLYWOOD
- 25MM RUBBER MAT
- RCC POST
THE ISOLATION LAYER WITHIN THE BRICK ENCLOSURE (GLASSWOOL + FLEXI PLY + GYSPUM + TIMBER FLOOR) IS VERY TENUOUSLY CONNECTED BACK TO THE STRUCTURE OF THE BUILDING TO LIMIT SOUND TRANSFER.
